MADE IN USA

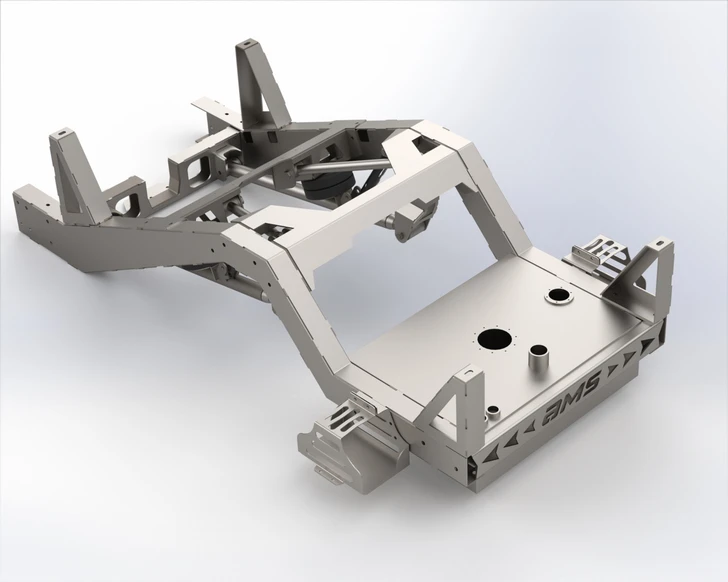

BOLT ON REAR HALF KIT* : AIR BAG SHORT BED VERSION
*NOTE: DIFFERENTIAL BRACKETS MUST BE WELDED ON
APPLICATION:
63-66 GM TRUCK 1/2 & 3/4 TON ONLY
LEAD TIMES 2-3 WEEKS
INCLUDED:
DRIVER & PASSENGER RAILS (BOLT ON)
FRONT CAB & LOWER LINK CROSS MEMBER (BOLT ON)
UPPER LINK & AIR BAG CROSS MEMBER (BOLT ON)
UPPER SHOCK & BEAUTY CROSS MEMBER (BOLT ON)
REAR FRAME CROSS MEMBER (BOLT ON)
UPPER AND LOWER 4 LINKS (BOLT ON)
PAIR OF KYB EXCEL G's SHOCKS AND HARDWARE
GRADE 8 HARDWARE & POLYURETHANE BUSHINGS
ADD ONS:
ALDAN AMERICAN SHOCKS TRULINE SERIES
SLAM SPECIALTIES SS7 AIRBAG (PAIR)
BATTERY TRAY (SINGLE OR DUAL)
AIR TANK MOUNTS (COMPRESSOR MOUNTS OPTIONAL)
BOYD FUEL CELL (19 GAL)
63-72 NON EFI - SIDE FILL - BED FILL
63-72 EFI (PUMP INCLUDED) - SIDE FILL - BED FILL
BED RISERS (4 CORNERS)
REAR DISC BRAKE KITS:
CPP DISC BRAKE KIT 63-87:
PART#W/O E BRAKE
1963.5-66 : 6366RWBK-6S (5 LUG, 5X5.5 PATTERN), 6366RWBK-6S (6 LUG, 6X5.5 PATTERN)
1967-72.5 : 6772RWBK-5S (5 LUG, 5X5.5 PATTERN), 6772RWBK-6S (6 LUG, 6X5.5 PATTERN)
1973-87 : 7187RWBK-5S (5 LUG, 5X5.5 PATTERN)
PART#WITH E BRAKE
1963.5-66 : 6366RWBK-6E (5 LUG, 5X5.5 PATTERN), 6366RWBK-6E (6 LUG, 6X5.5 PATTERN)
1967-72.5 : 6772RWBK-5E (5 LUG, 5X5.5 PATTERN), 6772RWBK-6E (6 LUG, 6X5.5 PATTERN)
1973-87 : 7187RWBK-5E (5 LUG, 5X5.5 PATTERN)
WILWOOD DISC BRAKE KIT 63-87:
5 OR 6 LUG AVAILABLE, 12.19" ROTORS (DRILLED AND SLOTTED), FORGED DYNALITE 4 PISTON BRAKE KIT(RED OR BLACK CALIPER OPTION)
BRAKE KIT (5 LUG, 5X5.5 PATTERN): BLACK CALIPER 140-10094-D, RED CALIPER 140-10094-DR
BRAKE KIT (6 LUG, 6X5.5 PATTERN): BLACK CALIPER 140-17612-D, RED CALIPER 140-16712-DR
TRANSMISSION MOUNT: UNIVERSAL FOR ANY GM TRANSMISSION
SHIPPING:
FRONT AND REAR CLIPS ARE PICK UP OR LOCAL DELIVERY ONLY TO GET ONE SHIPPED NATIONALLY PLEASE PLACE ORDER AND GIVE US A CALL
WARRANTY:
WE WARRANTY ANY MANUFACTURED PART OF THIS KIT (I.E. FABRICATED METAL PART) FOR AS LONG AS YOU OWN IT. NO QUESTIONS ASKED. IT IS NON TRANSFERRABLE. MUST SHOW PROOF OF PURCHASE.
PART NUMBER: AMS-BHKTB6366SB
