14-16 GM 1500 2" Drop Spindles - LOS101620.3C

Add to Cart




SKU:LOS101620.3C ,Availability:


Ships in 24 Hours

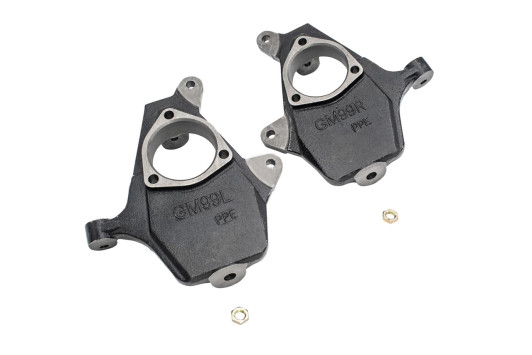

Our Drop Spindles are the top of the line in the Industry.  These lowering spindles are made from a ductile cast steel material. This is the same type of material that is found on OEM vehicle spindles. We utilize a proprietary casting process to deliver a superior part with an clean surface finish. Comes with everything shown in the picture!

These Drop Spindles will lower the front of your vehicle by 2 inches.


  • Drop Spindle Set (Left and Right side)
  • Lower Ball Joint Hardware kit -- Allows for running 17" and 18" rims

Vehicle Fitment:

  • 2014 - 2016 Chevrolet Silverado 1500 (2WD / AWD / 4WD) - Fits models with CAST steel Upper Control Arms
  • 2014 - 2016 GMC Sierra 1500 (2WD / AWD / 4WD) - Fits models with CAST steel Upper Control Arms

Fitment Notes:

  • Fits models with Cast Steel Upper control arms. Does NOT fit models with Stamped steel (welds going down side) or Aluminum upper arms.
  • Fits models with 17" or larger rims. Does NOT fit factory 16" rims
  • Hardware kit for the lower ball joint stud is provided to allow using 17" or 18" rims. Rims larger than this will use the factory hardware.
  • 2007 models MUST be the New Body Style. Does NOT fit the Classic Body Style for 2007.
  • Fits 2WD, 4WD and AWD models. 4WD and AWD models require trimming the upper ball joint stud for clearance between the stud and the axle boot

Part Number: LOS101620.3C
