MADE IN USA

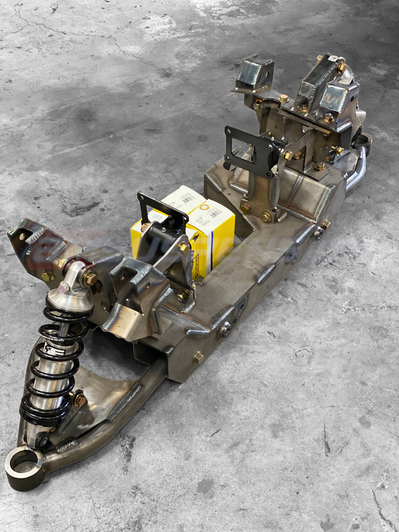

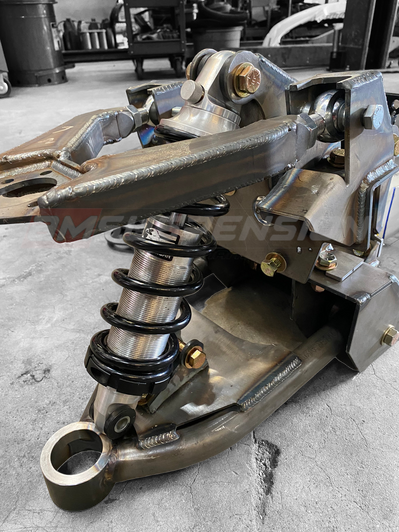

BOLT ON IFS KIT : AIR BAG VERSION
APPLICATION:
73-87 GM TRUCK 1/2 & 3/4 TON ONLY
LEAD TIMES 2-3 WEEKS
INCLUDED:
CROSS MEMBER (BOLT ON)
UPPER CONTROL ARM AND BAG MOUNT (BOLT ON)
UPPER AND LOWER CONTROL ARMS (BOLT ON)
INSIDE FRAME AND ENGINE MOUNT SUPPORT (BOLT ON)
ENGINE MOUNTS (BOLT ON)
RACK AND PINION FRONT PLATE (BOLT ON)
GRADE 8 HARDWARE & POLY-URATHANE BUSHINGS
UPPER AND LOWER MASTER PRO BALL JOINTS
RE-MANUFACTURED RACK AND PINION - 1 YR WARRANTY
TIE ROD KIT: MACHINED ADJUSTMENT SLEEVE, SPACERS, SPINDLE INSERT, HEIM JOINT
ADD ONS:
ALDAN AMERICAN SINGLE ADJUSTMENT COILOVERS - LIFETIME WARRANTY
CPP DISC BRAKE KIT: 5 LUG (GM 5 ON 5), 2.5" MODULAR DROP SPINDLE, 12" ROTORS PLAIN, DUAL PISTON CALIPERS, BRAKE LINES, SEALS AND BEARINGS. PART #'S BELOW
1963-70 : 6370SWBK-05 (5 LUG, 5X5.5 PATTERN), 6370SWBK-06 (6 LUG, 6X5.5 PATTERN)
1971-72 : 7172SWBK-05 (5 LUG, 5X5.5 PATTERN), 7172SWBK-06 (6 LUG, 6X5.5 PATTERN)
1973-87 : 7387SWBK-05 (5 LUG, 5X5.5 PATTERN), 7387SWBK-06 (6 LUG, 6X5.5 PATTERN)
WILWOOD DISC BRAKE KIT: 5 OR 6 LUG AVAILABLE, 2.5" MODULAR WILWOOD PRO SPINDLE, 12.19" ROTORS (DRILLED AND SLOTTED), FORGED NARROW SUPERLITE 6 PISTON BIG BRAKE KIT(RED OR BLACK CALIPER OPTION)
1963-70: PRO SPINDLE 831-15931 1971-87 : PRO SPINDLE 831-15932
BRAKE KIT (5 LUG, 5X5.5 PATTERN): BLACK CALIPER 140-15940-D, RED CALIPER 140-15940-DR
BRAKE KIT (6 LUG, 6X5.5 PATTERN): BLACK CALIPER 140-15944-D, RED CALIPER 140-15944-DR
TRANSMISSION MOUNT: UNIVERSAL FOR ANY GM TRANSMISSION
SHIPPING:
ALL IFS KITS HAVE A FLAT RATE SHIPPING OF $240 (+$60 IF ORDERED WITH BRAKE KIT W SPINDLES)
PART NUMBER: AMS-IFSKB7387
